Dell
Dell PowerEdge R860
Quad-Socket Computing for Mission-Critical Challenges
Qty:
1
Product Introduction

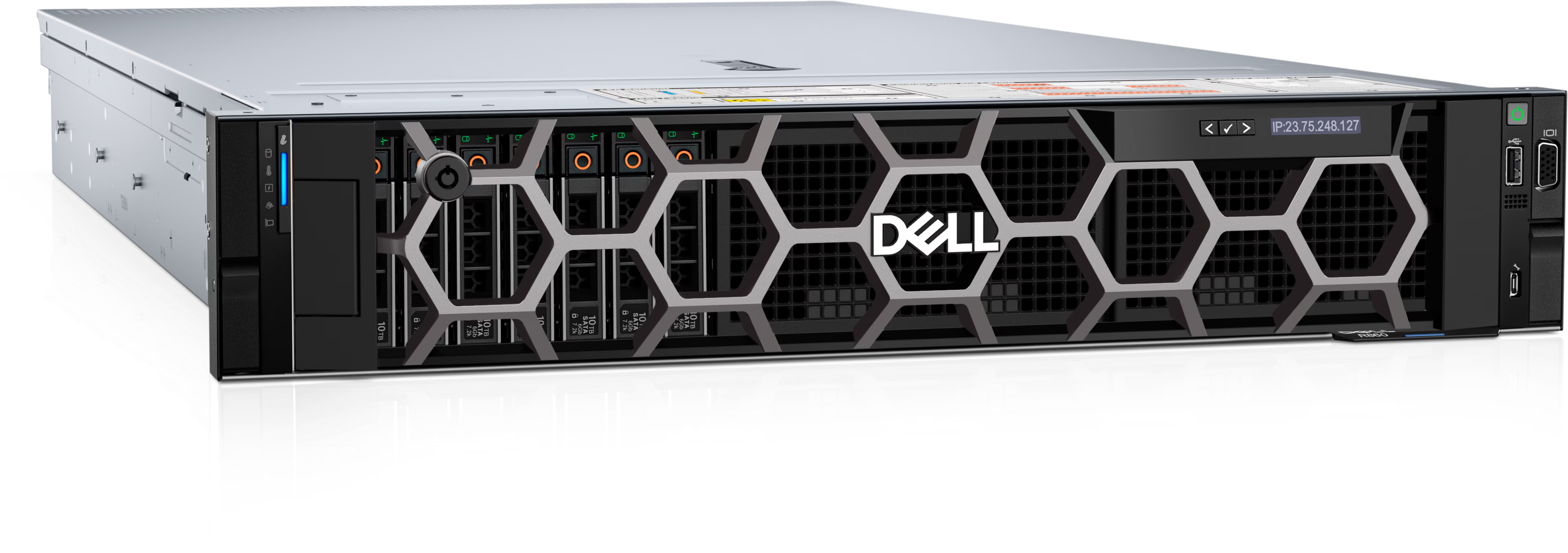

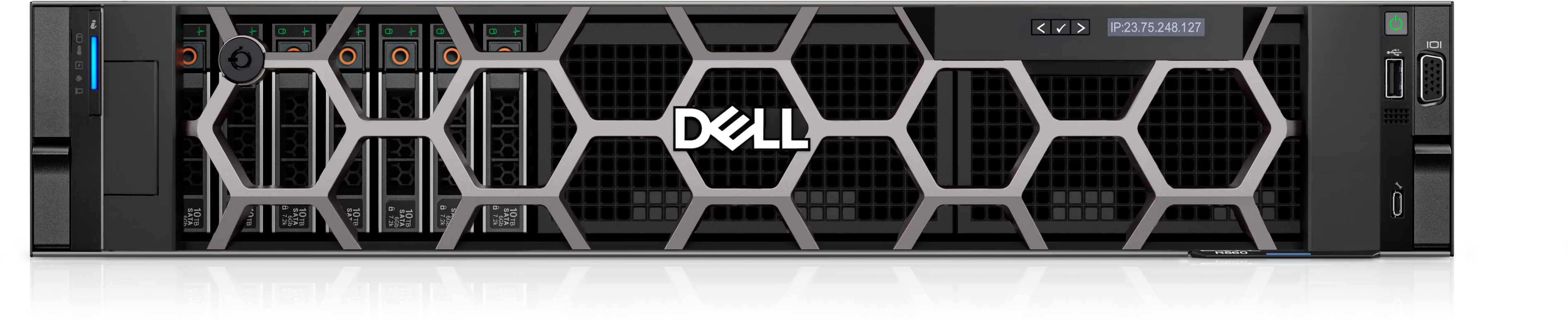

Dell PowerEdge R860 is a 4U quad-socket rack server supporting 4th Gen Intel Xeon Scalable processors with up to 60 cores per processor. Delivering powerful compute performance and expansion capabilities for large databases, virtualization, enterprise resource planning, and high-performance computing applications.
Technical Specifications
Processor
- •Four 4th Gen Intel Xeon Scalable processors, up to 60 cores per processor
Memory
- •64 DDR5 DIMM slots, speeds up to 4800 MT/s
- •Max support 16 TB RDIMM
- •Only supports registered ECC DDR5 DIMMs
Storage Controllers
- •Internal Controller (RAID): PERC H965i DC-MH
- •Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1)
- •External Controller: PERC H965e, HBA 465e
Drive Bays
- •Up to 24 2.5-inch NVMe RAID
- •Up to 24 2.5-inch SATA/universal drives
Power Supply
- •1800W Titanium 100-240 VAC or 240 HVDC, hot-plug redundant
- •2400 W Platinum 100-240 VAC or 240 HVDC, hot-plug redundant
Cooling Options
- •Air cooling
- •Up to six hot-plug fans
Dimensions
- •Height — 173.6 mm (6.83 inches)
- •Width — 482.0 mm (18.98 inches)
- •Depth — 820.38 mm (32.30 inches), with bezel
Form Factor
- •4U rack server
Embedded Management
- •iDRAC9
- •iDRAC Direct
- •OpenManage Enterprise
