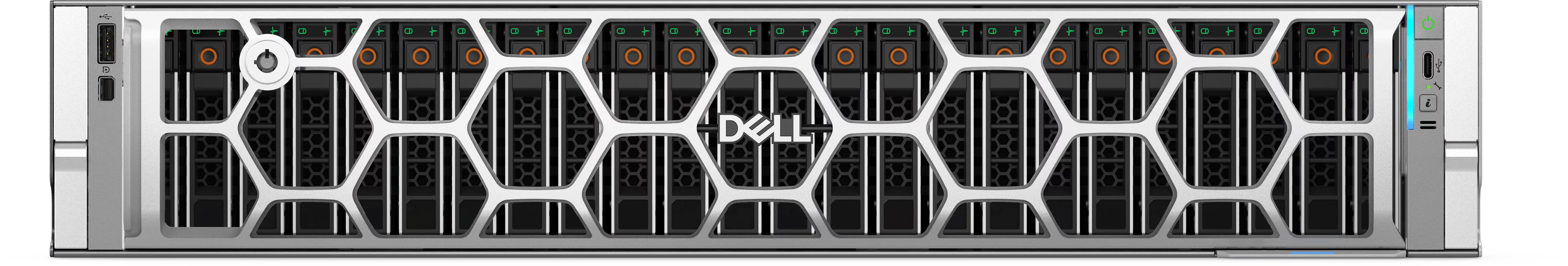

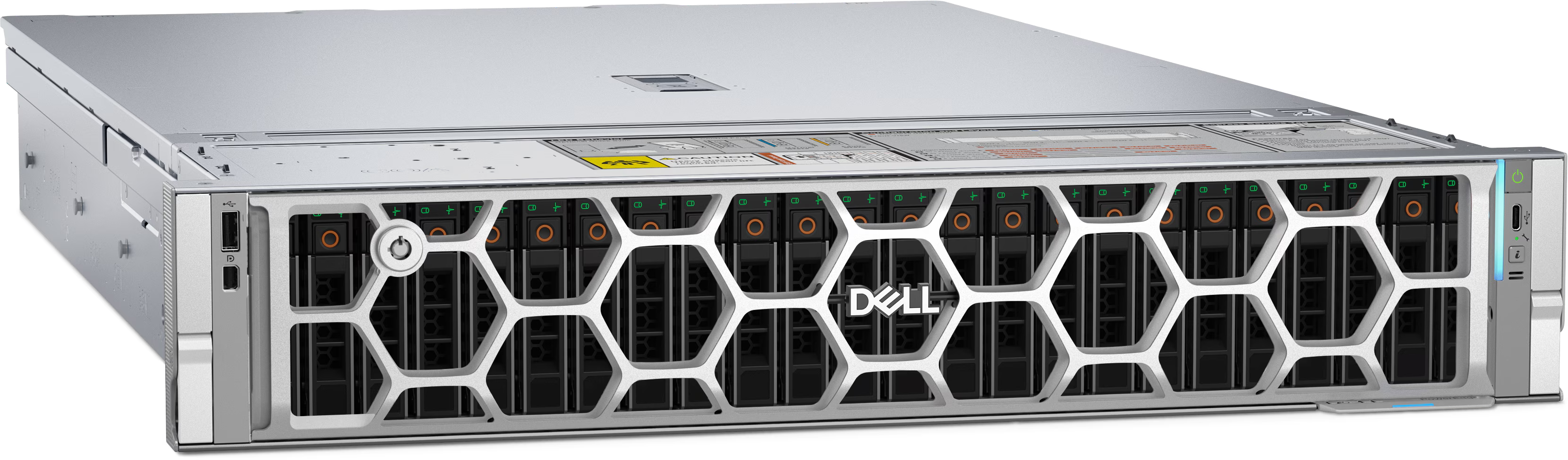

Dell PowerEdge R7725xd
Convergence of High-Capacity Storage and Dense Computing
Qty:
1
Product Introduction
Dell PowerEdge R7725xd is a 2U dual-socket storage-optimized server based on 5th Gen AMD EPYC 9005 series processors with up to 192 cores per processor. Delivering high-capacity storage and dense compute capabilities for software-defined storage, object storage, and data-intensive applications.
Technical Specifications
Processor
- •Two 5th Gen AMD EPYC 9005 series processors, up to 192 cores per processor
Memory
- •24 DDR5 DIMM slots, speeds up to 6400 MT/s
- •Max support 3 TB RDIMM
- •Only supports registered ECC DDR5 DIMMs
Storage Controllers
- •Internal Controller (RAID): PERC H365i DC-MHS, PERC H965i DC-MH
- •Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
- •External Controller: PERC H965e, HBA 465e
Drive Bays
- •Up to 36 3.5-inch SATA (HDD) RAID
- •High-density storage optimized configuration
Power Supply
- •1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot-plug redundant
- •1500W Titanium 100-240 VAC or 240 HVDC, hot-plug redundant
Cooling Options
- •Air cooling
- •Up to six hot-plug fans
Dimensions
- •Height — 86.8 mm (3.42 inches)
- •Width — 482.0 mm (18.98 inches)
- •Depth — 720.38 mm (28.36 inches), with bezel
Form Factor
- •2U rack server
Embedded Management
- •iDRAC9
- •iDRAC Direct
- •OpenManage Enterprise
