Dell

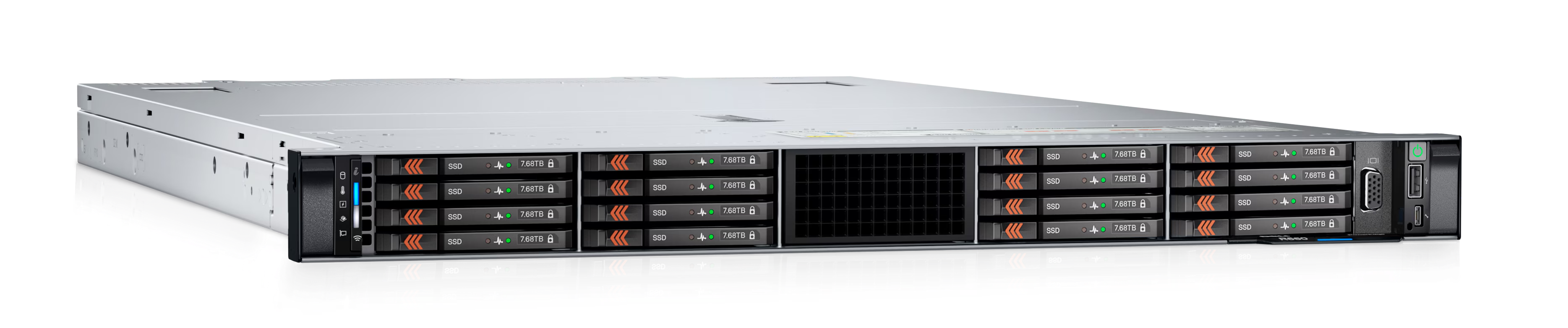

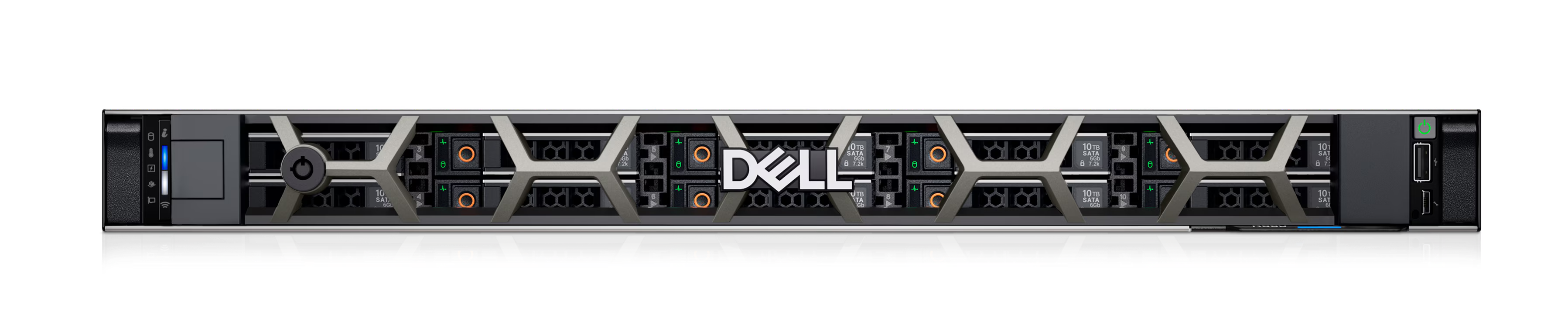

Dell PowerEdge R660
Perfect Balance of 1U Dual-Socket Performance and Density
Qty:
1
Product Introduction
Dell PowerEdge R660 is a 1U dual-socket rack server supporting 4th or 5th Gen Intel Xeon Scalable processors with up to 64 cores per processor. Delivering exceptional compute density and scalability for virtualization, cloud computing, and high-performance computing workloads.
Technical Specifications
Processor
- •Two 4th/5th Gen Intel Xeon Scalable processors, up to 64 cores per processor
Memory
- •32 DDR5 DIMM slots, speeds up to 4800 MT/s
- •Max support 8 TB RDIMM
- •Only supports registered ECC DDR5 DIMMs
Storage Controllers
- •Internal Controller (RAID): PERC H965i DC-MH
- •Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1)
- •External Controller: PERC H965e, HBA 465e
Drive Bays
- •Up to 10 2.5-inch NVMe RAID
- •Up to 10 2.5-inch SATA/universal drives
Power Supply
- •800 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot-plug redundant
- •1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot-plug redundant
Cooling Options
- •Air cooling
- •Up to four hot-plug fans
Dimensions
- •Height — 42.8 mm (1.69 inches)
- •Width — 482.0 mm (18.98 inches)
- •Depth — 720.38 mm (28.36 inches), with bezel
Form Factor
- •1U rack server
Embedded Management
- •iDRAC9
- •iDRAC Direct
- •OpenManage Enterprise
