Dell PowerEdge R360
Ideal Choice for Entry-Level Servers
Qty:
1
Product Introduction

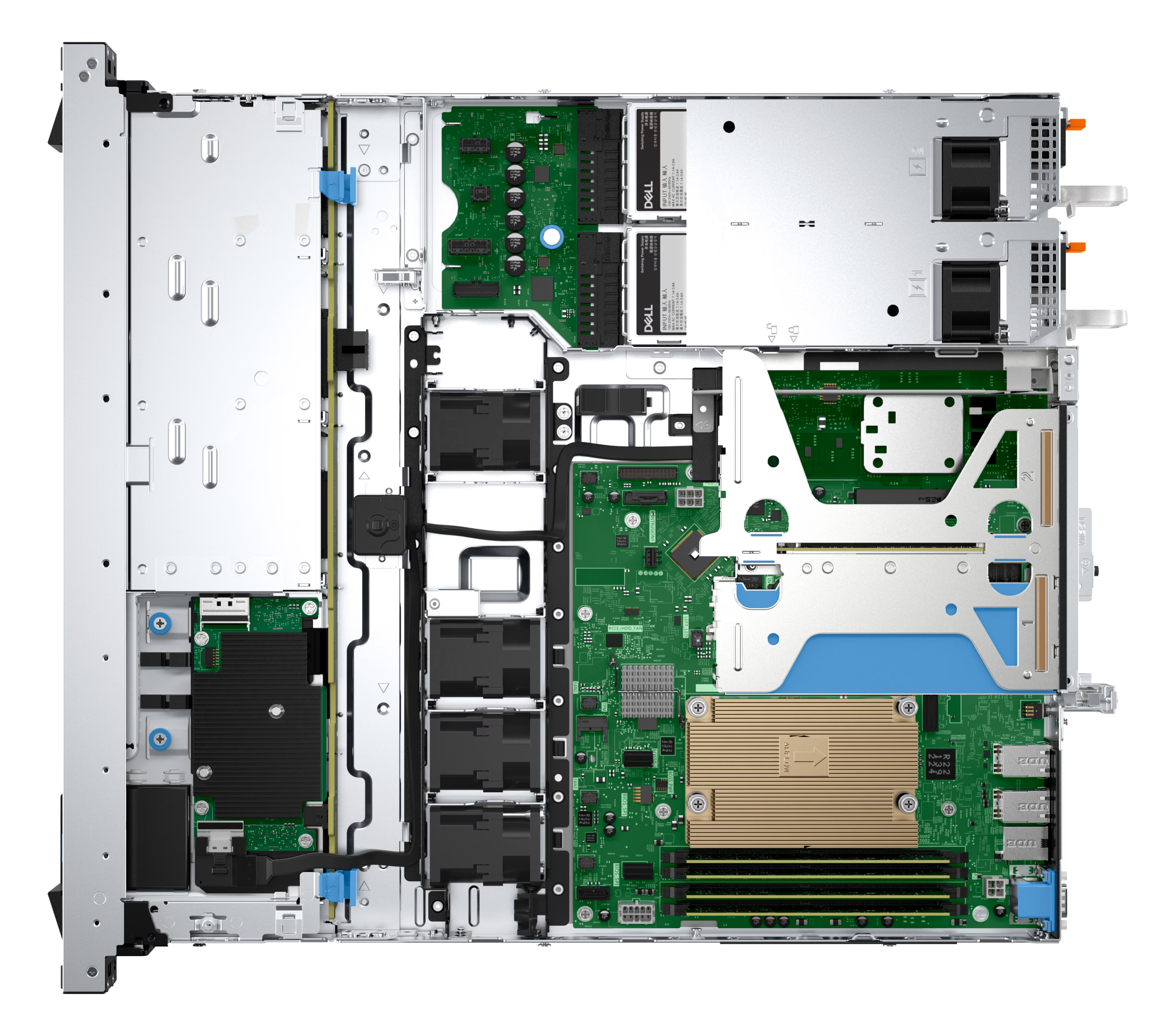

Dell PowerEdge R360 is a 1U single-socket rack server powered by Intel Xeon 6300 series or E-2400 series processors, designed for small businesses and remote offices. Delivering cost-effective compute performance and flexible storage options.
Technical Specifications
Processor
- •One Intel Xeon 6300 series or E-2400 series processor
Memory
- •4 DDR5 DIMM slots
- •Max support 128 GB RDIMM
- •Only supports registered ECC DDR5 DIMMs
Storage Controllers
- •Internal Controller (RAID): PERC H365i DC-MHS
- •Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
- •External Controller: PERC H965e, HBA 465e
Drive Bays
- •Up to 8 3.5-inch SATA (HDD) RAID
- •Up to 10 2.5-inch SATA/universal drives
Power Supply
- •600 W Platinum 100-240 VAC or 240 HVDC, hot-plug redundant
- •800 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot-plug redundant
Cooling Options
- •Air cooling
- •Up to four hot-plug fans
Dimensions
- •Height — 42.8 mm (1.69 inches)
- •Width — 482.0 mm (18.98 inches)
- •Depth — 620.38 mm (24.42 inches), with bezel
Form Factor
- •1U rack server
Embedded Management
- •iDRAC9
- •iDRAC Direct
- •OpenManage Enterprise
